Pref File

Sometimes the default rendering settings for your sprites may not be ideal. Customize them by creating a .pref file with the same filename as your sprite.

Open it with Notepad or any text editor; it uses INI format.

x = 0
y = 0
z = 0
pivotX = 0
pivotY = 0
shadow = 0
shadowX = 0
shadowY = 0
shadowRX = 0
shadowRY = 0
shadowBX = 0
shadowBY = 0
shadowBRX = 0
shadowBRY = 0
height = 0
heightFix = 0
scaleIcon = -40
liquidMod = 0
liquidModMax = 0
hatY = 0
equipX = 0
equipY = 0
stackX = 0

You may omit any unused fields. ; comments can also be used.

• x, y, z position offset

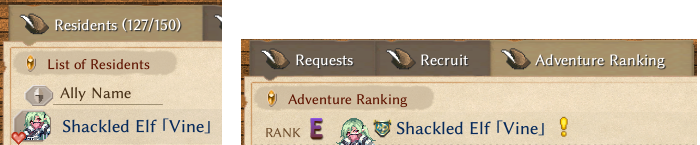

• pivotX,pivotY pivot offset, used on small sprites such as resident board avatar
• shadow ShadowData id
• shadowX, shadowY shadow position offset
• shadowRX, shadowRY shadow reverse
• shadowBX, shadowBY shadow back
• shadowBRX, shadowBRY shadow back reverse
• height tile height modifier
• heightFix text component height offset (floating little widgets)
• scaleIcon icon size scaling
• liquidMod tile liquid level modifier; can be negative
• liquidModMax tile liquid level max
• hatY hat renderer y position offset
• equipX, equipY held position offset
• stackX tile stacking x position offset

Shadow Data ID

id	name
0	default
1	no shadow
17	pillar
18	altar
19	cabinet
20	bed
21	counter
22	gacha
23	tree
24	screen
25	safe
26	vendor
27	straw
28	grave
29	thin
30	tree0
31	tree1
32	tree2
33	tree3
34	tree4
35	tree5
36	tree6
37	pillar
38	big table
39	big table2
40	counter2
41	door
42	thin2
43	square
44	boss1
45	boss2
47	corner
48	ceil
49	big
50	bridge
51	long
52	long2
